Product Description
The brackish water desalination equipment is suitable for high salinity areas and seawater inversion areas, and is designed by an internationally advanced reverse osmosis technology.
The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in brackish water, and desalinate brackish water into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2022).
2-stage RO product water quality: TDS<5mg/L.
Product Parameters
|
72TPD Two Stage RO Brackish Water Desalination Equipment |
|
| Model | WY-BW-72-2 |
| Water yield | 3m3/h |
|
2-stage RO product water quality |
TDS<5mg/L |
|
Desalination rate |
>98.5% |
| Output water saltness | <5mg/L |
|
Recovery rate |
1-stage: 65%, 2-tage: 85% (Depending on temperature and inlet water quality) |
| Operation pressure |
1-stage: 1.5~3.5Mpa 2-stage: 0.5~1.5Mpa |
|
RO Membrane |
1-stage: 5 pcs, 2-stage: 3 pcs |
|
Pressure vessel |
1-stage: 2 pcs, 2-stage: 1 pcs |
|
Power |
9.86KW |
|
Voltage |
AC220V / 60Hz / Three phase |
|
Protection grade |
IP54 |
|
Dimensions |

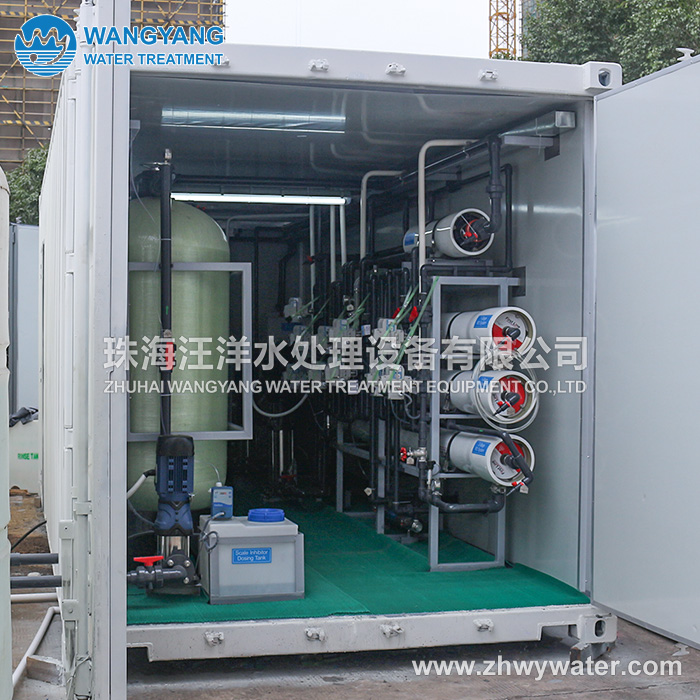

20 feet container
Equipped with insulation, air conditioning |
|
Net weight |
6,000Kg |
* 1. Equipment can be customized according to customer requirements.
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with a manual multi-way valve, and the multi-media filter and the activated carbon filter are cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
4. Matching ultraviolet sterilizer to ensure water quality.
Main accessories
● Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand
● Pressure vessel: FRP material
● Feed Pump: CNP brand
● High Pressure Pump: CNP brand
● Conductivity Meter: Createc
● Electric Element: Schneider brand or equivalent
Equipment list
1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories
Please contact us for more details.
Mobile: +86 133 2668 2480(Steve)
+86 133 2665 7486(Abey)
Whatsapp: +86 137 9898 8771(Steve)
+86 159 1922 3536(Abey)
Email: abey@zhwywater.com
Component drawing：
 |
|
 |

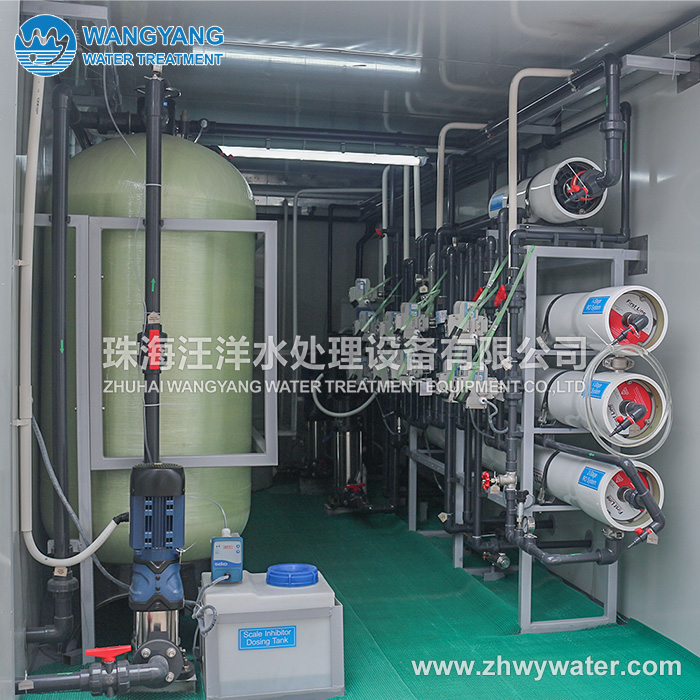

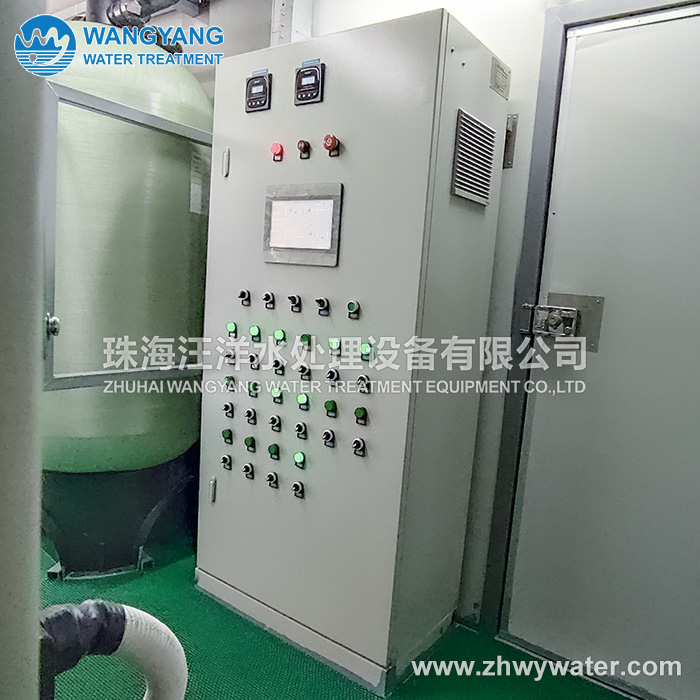

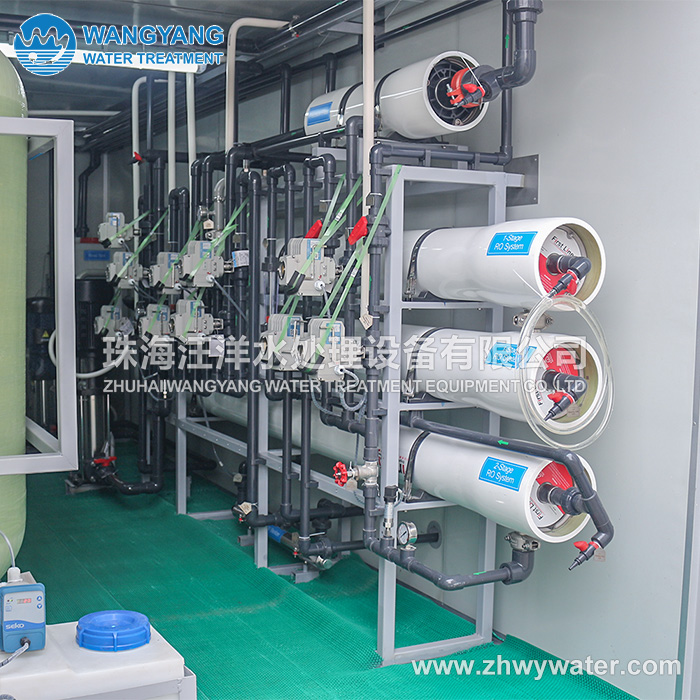

| Control Cabinet | Two stage RO system |

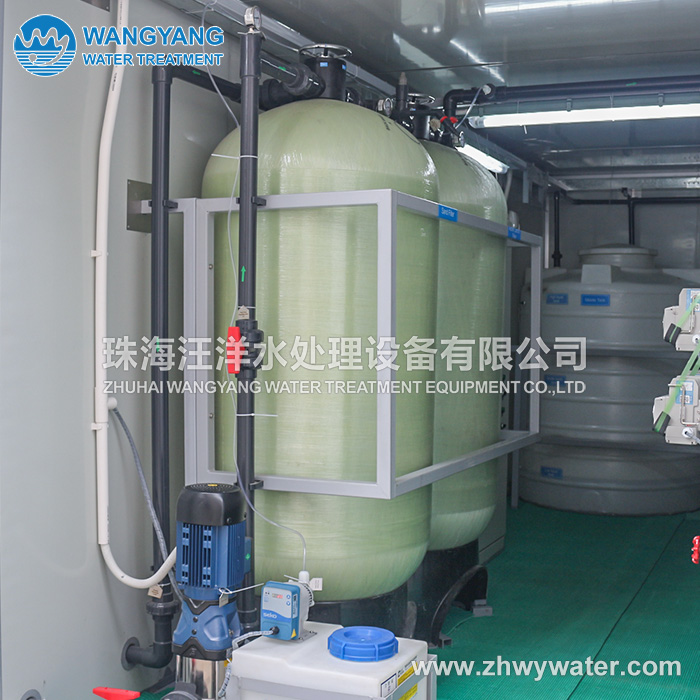

Multi-media Filter Activated Carbon Filter |
 |
 |
 |

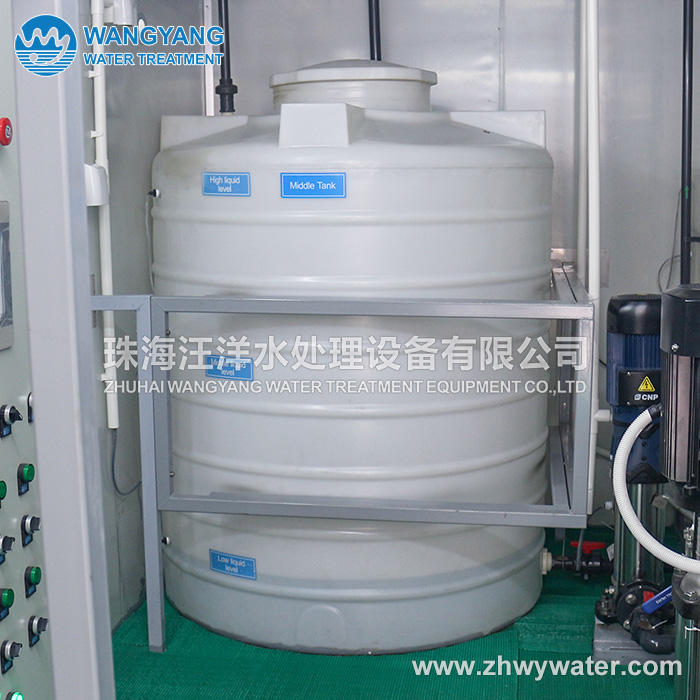

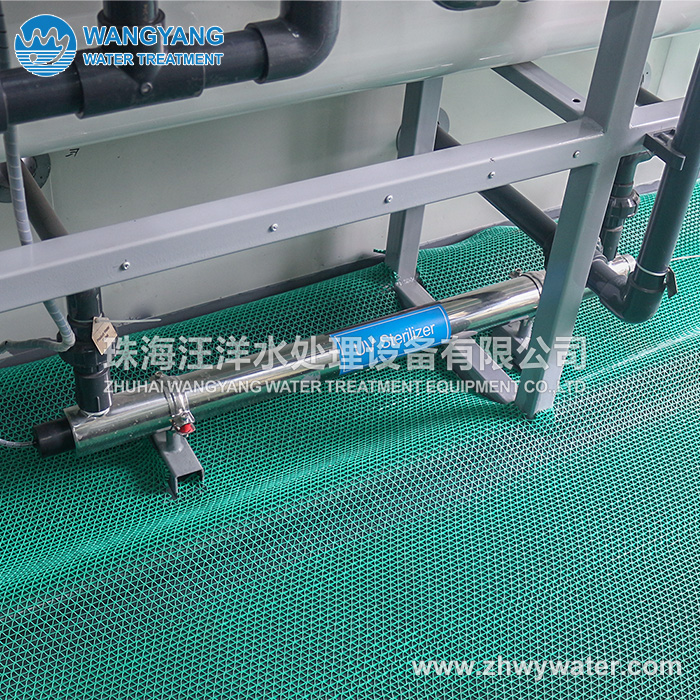

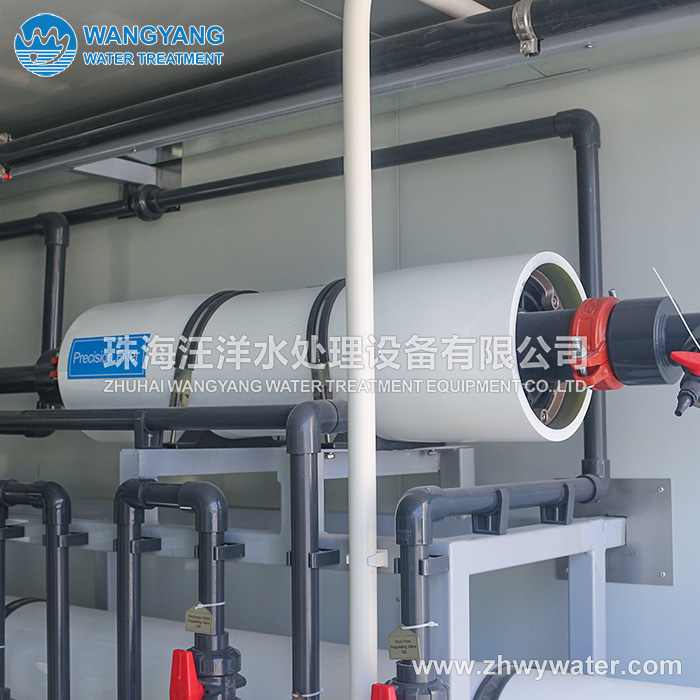

| Precision Filter | Middle Water Tank | Ultraviolet Sterilizer |
 |
 |
 |
|

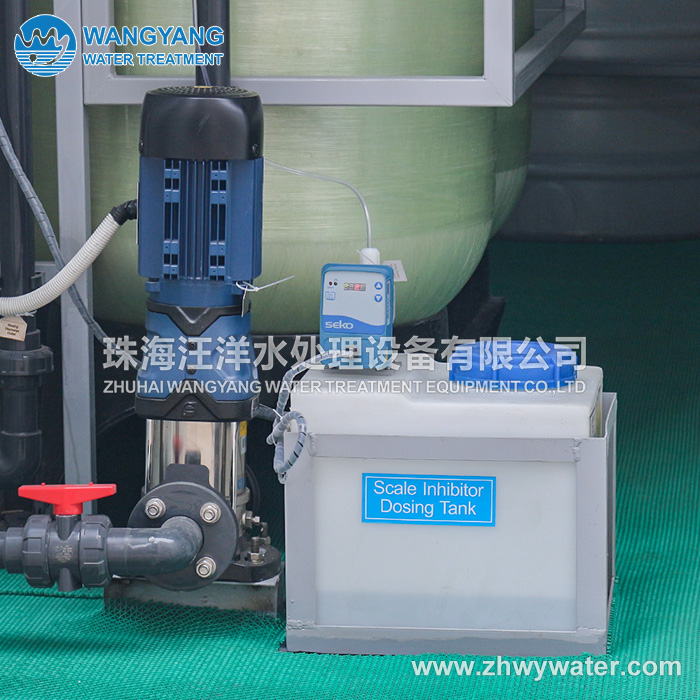

Feed Pump, Dosing Device |
High Pressure Pump |

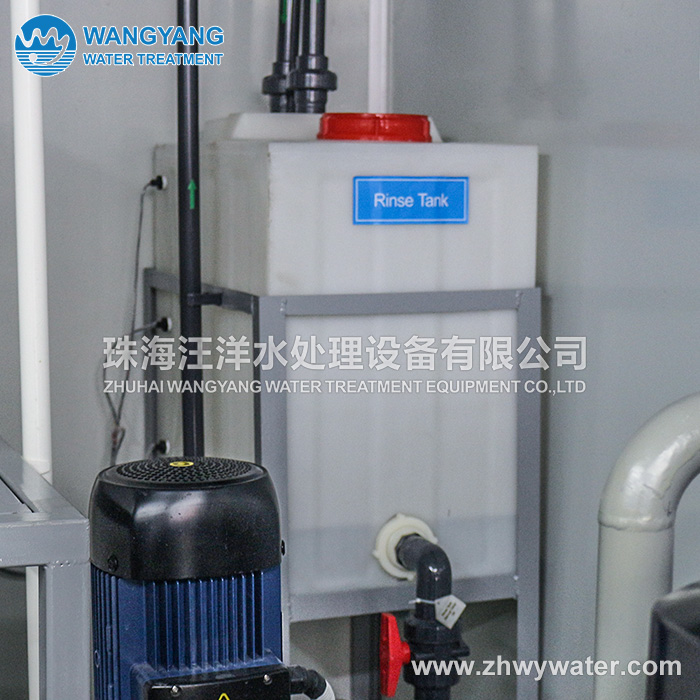

Rinse Tank |
Process flow diagram
Features and advantages
● High quality imported high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
● High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
● Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.
● The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
● Wide range of power supply: 220V~440V/50~60HZ.
● 2-stage RO product water quality standard: TDS<20mg/L.
● Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
● The type of equipment combination can be realized: bracket type, armored type, brake type, container type, etc.
Reverse Osmosis Technology
The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.
The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.
The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.
Applicable field
 |
 |
 |
| Drinking Water | Water for food and beverage industry | Industrial production water |
 |
 |
 |
| Power industry boiler feed water | Pharmaceutical industry water | Building, school water supply |
Customer cases
 |
 |
|
Africa containerized brackish water desalination equipment (48 tons per day) project case |
