Product Description




480 tons of softened water and 48 tons of 2-stage pure water treatment equipment adopt softening treatment and reverse osmosis process to produce fresh water, which has the advantages of high water quality, stable water quality and low energy consumption.


After the raw water is treated by the water treatment system, the TDS is less than 2mg / L, the softening water production is 20 tons / hour, and the pure water production is 2 tons / hour.


Scope of application:

Water for hospital disinfection and supply room (all kinds of cleaning machines, cleaning vehicles, ultrasonic cleaning, high-pressure sterilization equipment); preparation and dispensing water container cleaning water for hospital pharmacy and supply department.


Product Parameters

Product water quality：TDS<2mg/L

Raw water quality：TDS<700PPM

480TPD softened water and 48TPD 2-stage pure water treatment equipment

Model WY-RH-480+TW-48-12
Water yield

Softend water: 20Tons/hour

Pure water: 2Tons/hour

Product water quality
 TDS<2mg/L
Desalination rate
 >98.5%
Output water saltness <2mg/L
Recovery rate

First-stage RO: 65%

Second-stage RO: 85%

RO Operation pressure 0.1~0.3Mpa
RO Membrane
 2 pcs
Pressure vessel
 2 pcs
Power
 2.21KW
Voltage
 AC380V / 50Hz / Three phase
Protection grade
 IP54

* 1. Equipment can be customized according to customer requirements.


System function

1. The whole system runs fully automatically, with automatic rinse and regeneration functions of the pretreatment system.
2. Pure water tank liquid level and pure water delivery automatic control function.
3. It has multiple device safety functions such as waterless protection and high and low pressure protection.
4. High-precision conductivity meter monitors and displays the quality of produced water online.
5. Flexible and reliable process design, suitable for different water sources.
6. Meet the special requirements of users for remote, high-level, multi-point use.



Main accessories

● Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand

● Pressure Vessel: 450PSI, FRP material

● Softening Bed: φ900x1900mm, FRP material

● Precision Filter: 20"x5μ

● Feed Pump: Grundos & CNP brand, One for use and one for reserve

● High Pressure Pump: Grundos & CNP brand, One for use and one for reserve

● RO water tank: SUS304, 20m3

● Soften water tank: SUS304, 20m3

● Pure water tank: SUS304

● Conductivity Meter: Createc

● Electric Element: Schneider brand or equivalent


Equipment list

1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories



Please contact us for more details.


Mobile: +86 133 2668 2480(Steve)

                     +86 133 2665 7486(Abey)

Whatsapp: +86 137 9898 8771(Steve)

                           +86 159 1922 3536(Abey)

Email: steve@zhwywater.com

                    abey@zhwywater.com


Component drawing:

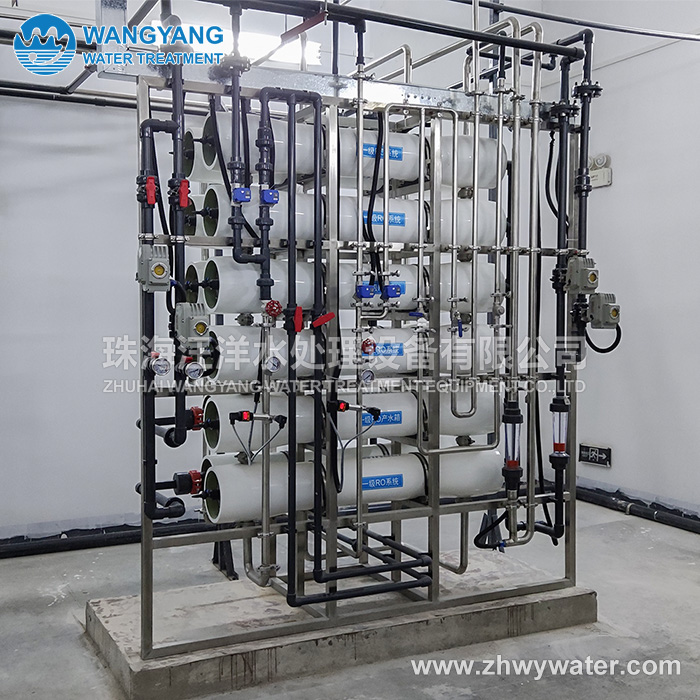

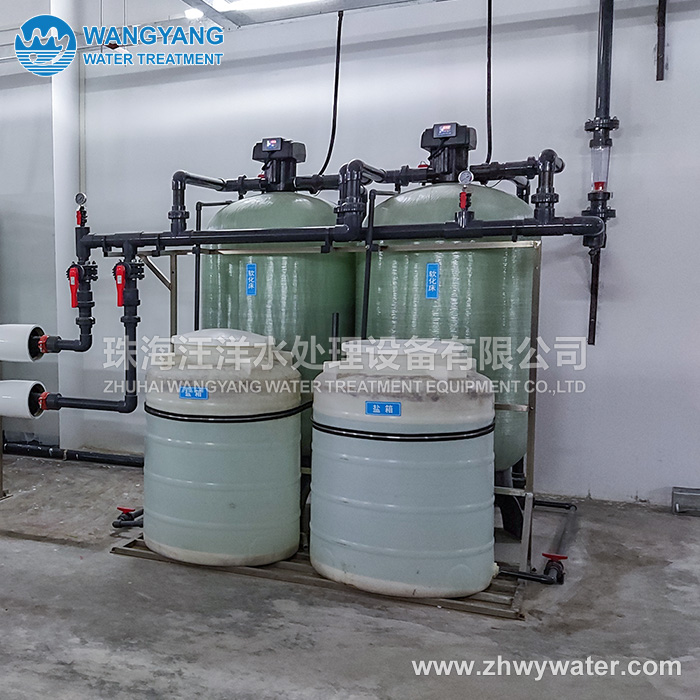

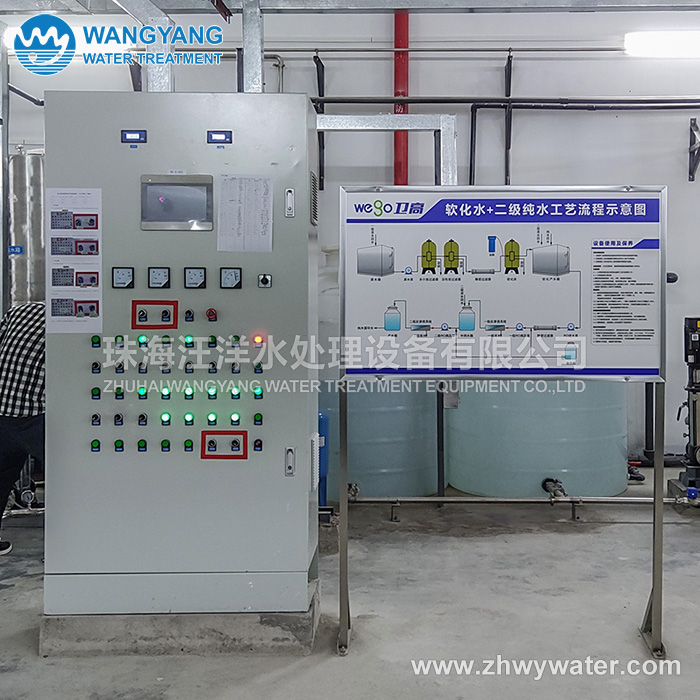

Control Cabinet RO System Softening Bed



Multi-media Filter Active Carbon Filter Precision Filter



Raw Water Tank Soften Water Tank
 Pure Water Tank



Middle Water Tank
 Rinse Tank High Pressure Pump



Process flow diagram



Features and advantages


● Multi-media filter (with automatic rinse control valve): reduce water quality and turbidity, and remove impurities such as iron and manganese.
● Activated carbon filter (with automatic rinse control valve): absorbs residual chlorine and organic matter in water.
● Softening bed (with automatic rinse regeneration device): remove calcium and magnesium plasma, reduce the hardness of raw water.
● Precise filter: Precise treatment of impurities in water, deep filtration, and improvement of RO membrane inlet water quality.
● RO membrane treatment plate: adopt high-quality reverse osmosis membrane components to effectively remove ions, bacteria, heat sources, etc.
● Pure water supply part: full circulation constant pressure water supply.



Reverse Osmosis Technology

The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.

The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.

The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.



Applicable field




Drinking Water Water for food and beverage industry Industrial production water



Power industry boiler feed water Pharmaceutical industry water Building, school water supply
