Product Description
Container type pure water desalination system is to desalinate raw water into pure water to meet customer water requirements.
The raw water passes through the pretreatment system of multi-media filter and activated carbon filter to remove particulate impurities, colloids and residual chlorine in the water, and then passes through the reverse osmosis system to remove bacteria, viruses and other microorganisms in the water and most of the heavy metal plasma that is harmful to the human body.
Reverse osmosis produces water through the UV sterilizer post-treatment system
Equipment integrated container design. The system is commissioned before delivery, and only needs to connect external pipes and power supplies to the site to accelerate field deployment. Fully automated operation, simple operation and maintenance.
Product Parameters
|
80 Tons/Day Pure Water Desalination Equipment |
|
| Model | WY-TW-80 |
| Water yield | 80 Tons/Day(3.34 Tons/Hour) |
|
RO product water quality |
TDS<10mg/L |
|
Desalination rate |
>99.5% |
| Raw water quality | TDS<100mg/L |
|
Recovery rate |
70%(Depending on temperature and inlet water quality) |
| Operation pressure | 1~3Mpa |
|
RO Membrane |
4 pcs |
|
Pressure vessel |
2 pcs |
|
Power |
4.68KW |
|
Voltage |
AC380V / 50Hz / Three phase |
|
Protection grade |
IP54 |
|
Dimensions |
20feet container |
|
Net weight |
4000Kg |
* 1. Equipment can be customized according to customer requirements.
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with an automatic control multi-way valve, and the multi-media filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
Main accessories
● Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand
● Pressure Vessel: FRP material
● Feed Pump: NB brand
● High Pressure Pump: NB brand
● Conductivity Meter: Createc
● Electric Element: Schneider brand or equivalent
● UV Sterilizer: 10 Tons/Hour
● PLC
● Touch Screen
Equipment list
1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories
Please contact us for more details.
Mobile: +86 133 2668 2480(Steve)
+86 133 2665 7486(Abey)
Whatsapp: +86 137 9898 8771(Steve)
+86 159 1922 3536(Abey)
Email: abey@zhwywater.com
Component drawing：
|
|
|
 |
| Electric Control Box | Multi-media, Active Carbon Filter | Precision Filter |
 |
 |
 |

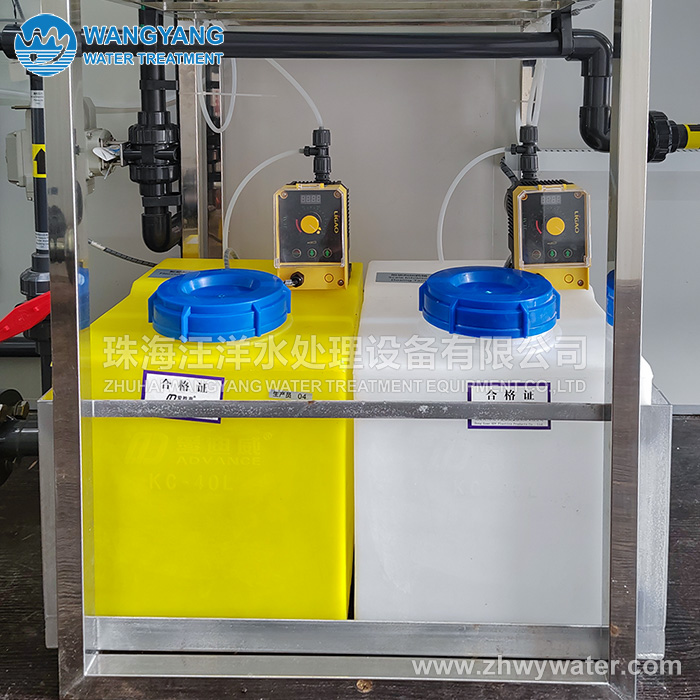

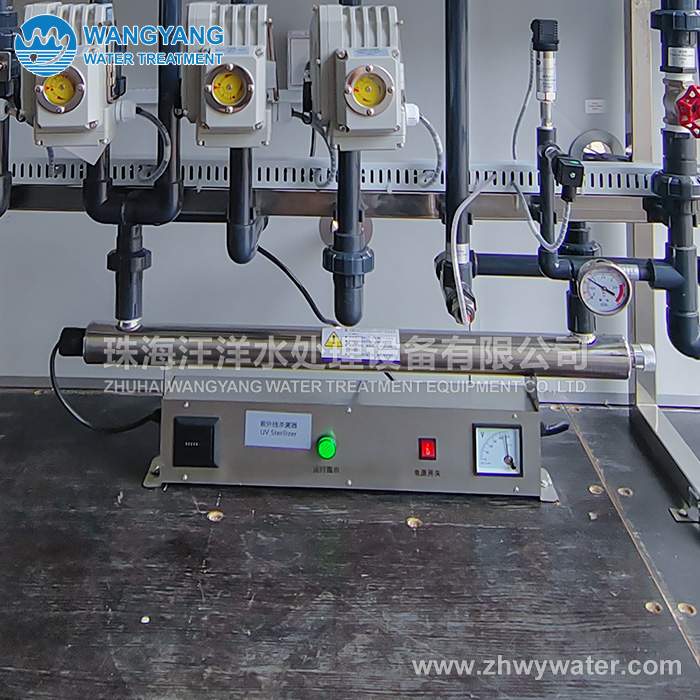

| Dosing System | High Pressure Pump | UV Sterilizer |

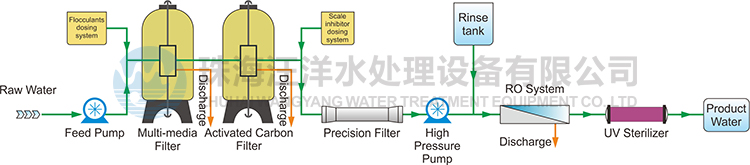

Process flow diagram
Features and advantages
● High quality imported high pressure pump with high operating efficiency, low energy consumption and long service life.
● High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
● Rack piping and fittings are made of stainless steel materials to ensure long-lasting equipment and low maintenance costs.
● The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
● Wide range of power supply: 220V~440V/50~60HZ.
● RO product water quality: TDS<10mg/L.
● Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
● The type of equipment combination can be realized: bracket type, armored type, brake type, container type, etc.
Reverse Osmosis Technology
The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.
The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.
The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.
Applicable field
 |
 |
 |
| Drinking Water | Water for food and beverage industry | Industrial production water |
 |
 |
 |
| Power industry boiler feed water | Pharmaceutical industry water | Building, school water supply |
Customer cases
 |
 |
|
Pure water treatment equipment for food and beverage industry project case |
