240T/d Seawater Desalination Equipment

The seawater desalination system adopts the international advanced reverse osmosis technology and is designed by optimizing the system.

Applicable to cargo ships, oil tankers, offshore drilling platforms, islands, stations and coastal cities short of water.

The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2022).

The whole system is equipped with advanced flow meter, pressure control instrument and safety pressure relief device, and is equipped with advanced detection and monitoring system to ensure stable operation of the system and high quality water production. When the water quality exceeds the warning salinity value, the system automatically opens and drains. Valves, which direct the production of water into the waste water line) and provide accurate values for the operation of the system.

Application scope

The equipment with water yield 10,000L/h, which is suitable for water consumption of less than 600 peoples.

Specifiactions:

Model	Water yield	Power	Recovery rate	Dimensions
	m3/d	KW	%	Contanier

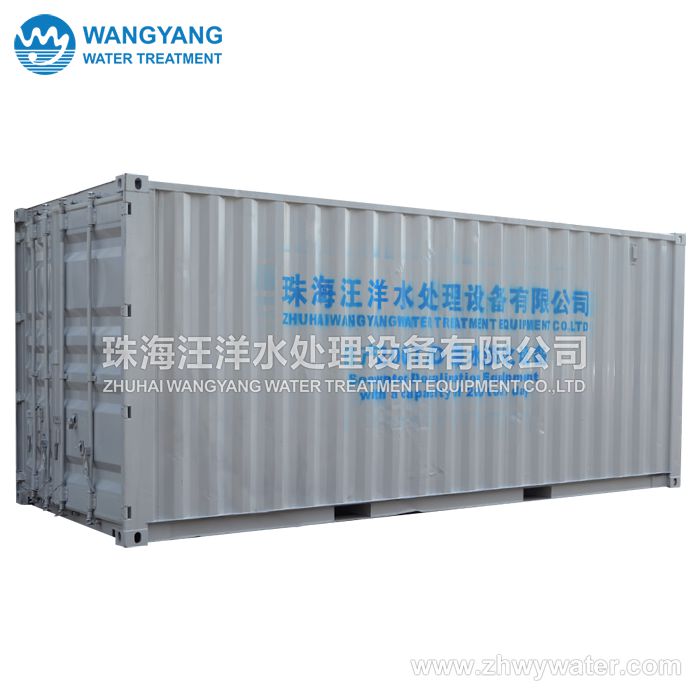

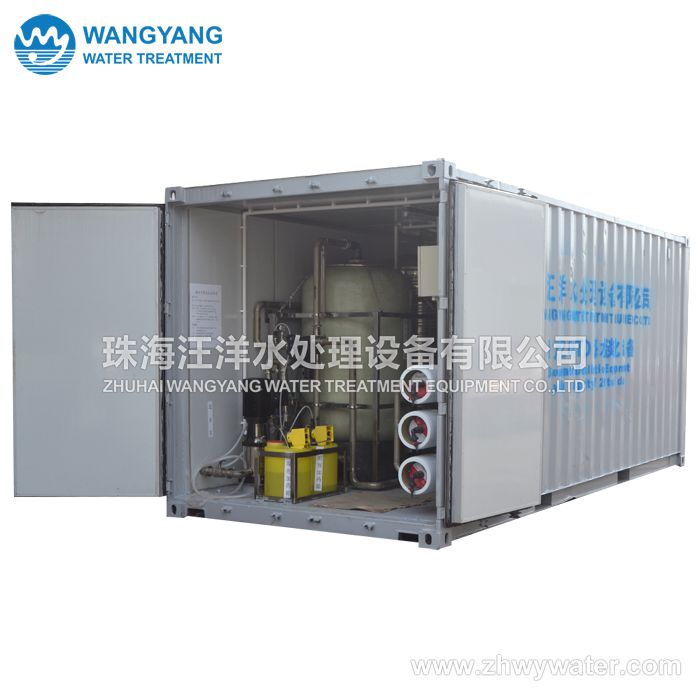

WY-SW-240	240	33	45	40 Feet

Equipment can be made according to customer’s requirements, only standard models are shown in the form.

Please contact us for more details.

Mobile: +86 133 2668 2480(Steve)

                     +86 133 2665 7486(Abey)

Whatsapp: +86 137 9898 8771(Steve)

                           +86 159 1922 3536(Abey)

Email: steve@zhwywater.com

                    abey@zhwywater.com

Process flow diagram

Water inlet → Multi-media filter → Precision filter → High pressure pump → Reverse osmosis system → Product water

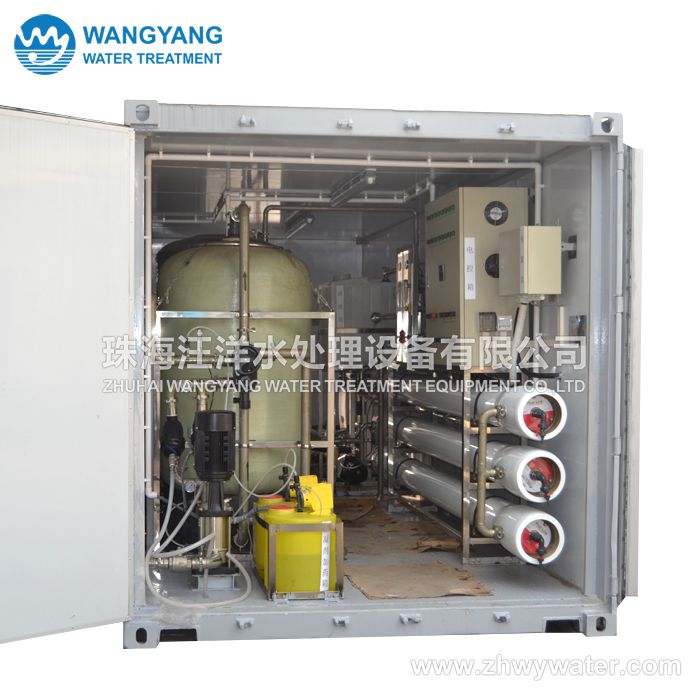

Configuration

● RO Membrane: USA DOW / TORAY / HYDRANAUTICS / GE.

● Pressure Vessel: Firstline, FRP Material.

● Raw Water Booster Pump: Grundfos / CNP.

● High Pressure Pump: Diamond / CNP.

● Device Framework: Industry-standard thick-walled stainless steel tube, and pipe outer surface is polished.

● Pipeline: The high-pressure side pipeline adopts dualphase steel or stainless steel pipelines and high-pressure hoses. Low-pressure side pipe uses UPVC pipe.

● Electric Element: Schneider.

● Optional energy recovery device.

Water quality

First-stage RO water quality: National Standard for Drinking Water (GB5749-2022).

Second-stage RO water quality: Pure water standard.

Performance and features

● Reverse osmosis seawater desalination technology is mature and advanced, the desalination rate is up to 99.5%.

● Energy saving design, low energy consumption and low cost of water production.

● Rigorous process design ensures long system life and low maintenance costs.

● Stable water quality: advanced water quality control and sophisticated system maintenance program to ensure long-term stability of effluent water quality.

● Easy to operated and maintained, cleaned and repaired without disassembly, easy to managed.

● Efficient energy recovery system and overall optimization design greatly reduce energy consumption.

The desalination equipment adopts reverse osmosis water treatment technology, and has been well received by many customers after many years of practical application.

The desalination equipment is mainly treated with domestic drinking water from boats, ships, offshore platforms and islands. The treated water can meet the national drinking water standards, and can be treated again to meet the national pure water standards.
