Containerized Seawater Desalination System

The containerized seawater desalination equipment adopts the international advanced reverse osmosis technology. From the seawater water inlet system, coarse filtration and lower seawater turbidity are started. Then, a special high pressure booster pump is used, seawater enters the reverse osmosis membrane, and the seawater treated by the reverse osmosis membrane contains The amount of salt is greatly reduced, the water is produced into the pure water tank, and the water quality meets the requirements of domestic water use (national sanitary standard for drinking water (GB5749-2022)).

The desalination system adopts reverse osmosis water treatment technology, and has been well received by many customers after many years of practical application.

The desalination equipment is mainly treated with domestic drinking water from boats, ships, offshore platforms and islands. The treated water can meet the national drinking water standards, and can be treated again to meet the national pure water standards.

Specifiactions:

Equipment can be made according to customer’s requirements, only standard models are shown in the form.

Raw Water Quality

TDS: ≦40000mg/L

Inlet Temperature: 5~45℃

Product Water Quality

TDS: <700mg/L (City tap water standard)

Desalination Rate: ≧99.5%

Operating Pressure: <6.5MPa

Power

Voltage: 220V / 380V /440V, 50~60HZ, Three-phase

Protection Levels: IP54

Please contact us for more details.

Mobile: +86 133 2668 2480(Steve)

                     +86 133 2665 7486(Abey)

Whatsapp: +86 137 9898 8771(Steve)

                           +86 159 1922 3536(Abey)

Email: steve@zhwywater.com

                    abey@zhwywater.com

Process flow diagram

Water inlet → Multi-media filter → Precision filter → High pressure pump → Reverse osmosis system → Product water

Configuration

● RO Membrane: USA DOW / TORAY / HYDRANAUTICS.

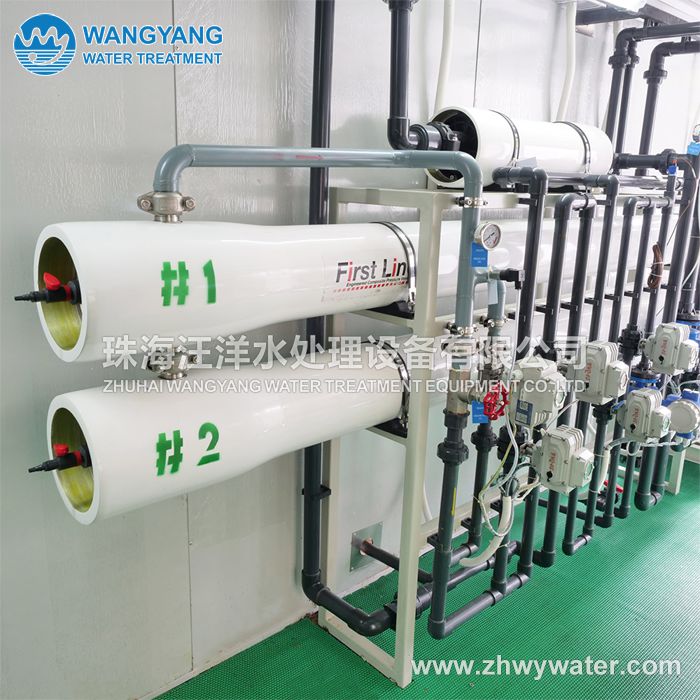

● Pressure Vessel: Firstline, FRP Material.

● Raw Water Booster Pump: Grundfos / CNP.

● High Pressure Pump: CAT / Diamond / CNP.

● Device Framework: Industry-standard thick-walled stainless steel tube, and pipe outer surface is polished.

● Pipeline: The high-pressure side pipeline adopts dualphase steel or stainless steel pipelines and high-pressure hoses. Low-pressure side pipe uses UPVC pipe.

● Electric Element: Schneider.

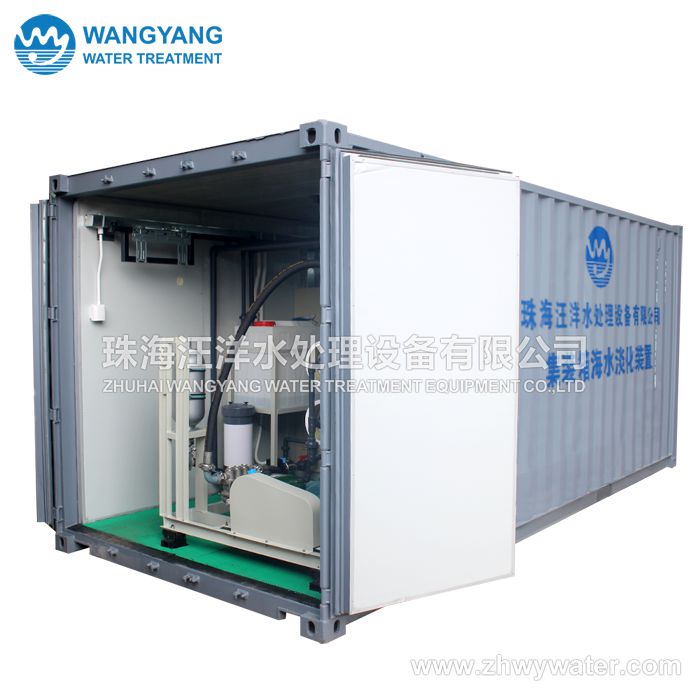

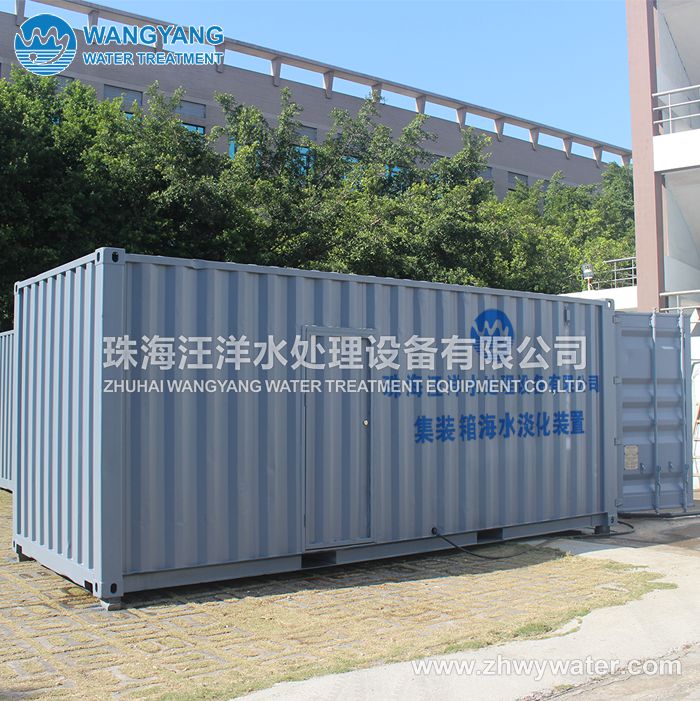

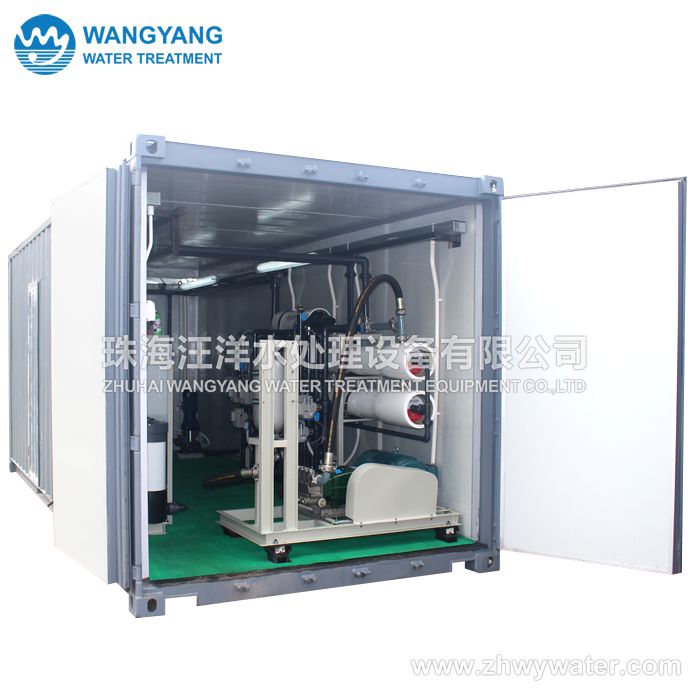

● Container size: 20 feet, 40 feet.

● Energy recovery device can be used to reduce energy consumption.

Water quality

First-stage RO water quality: National Standard for Drinking Water (GB5749-2022).

Second-stage RO water quality: Pure water standard.

Performance and features

● Reverse osmosis seawater desalination technology is mature and advanced, the desalination rate is up to 99.5%.

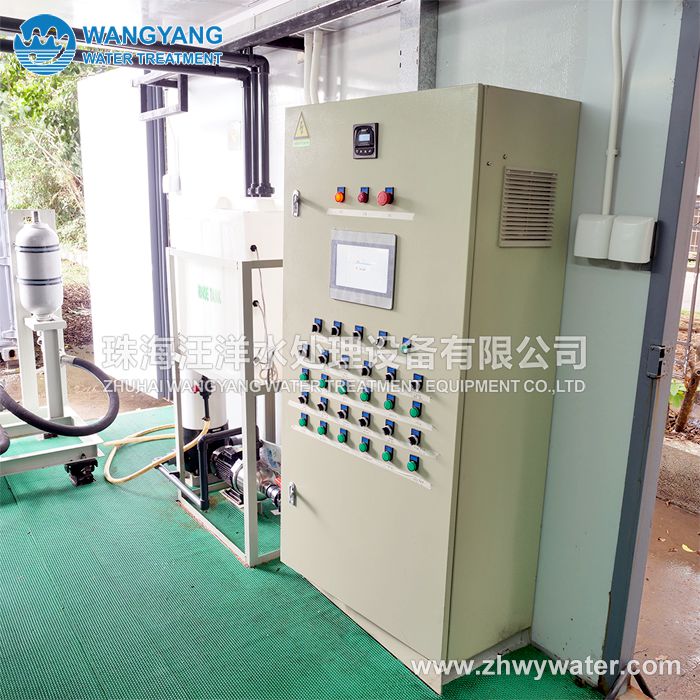

● Using automatic control technology to achieve automatic management, reduce labor intensity and management costs.

● Energy saving design, low energy consumption and low cost of water production.

● Rigorous process design ensures long system life and low maintenance costs.

● Reliability: 24-hour continuous operation.

● Easy to operated and maintained, cleaned and repaired without disassembly, easy to managed.

● Customizable according to customers’needs.

Recommended Products

20TPD Two-stage RO  Seawater Desalination Equipment	72TPD  Seawater Desalination Equipment	144TPD  Seawater Desalination Equipment
200TPD  Seawater Desalination Equipment	360TPD  Seawater Desalination Equipment	1200TPD  Seawater Desalination Equipment

Customer Cases

Reverse Osmosis Technology

The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.

The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.

The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.

Applicable field

Ship	Island	Industrial process water
Offshore working platform	Coastal water shortage area	Desert area
