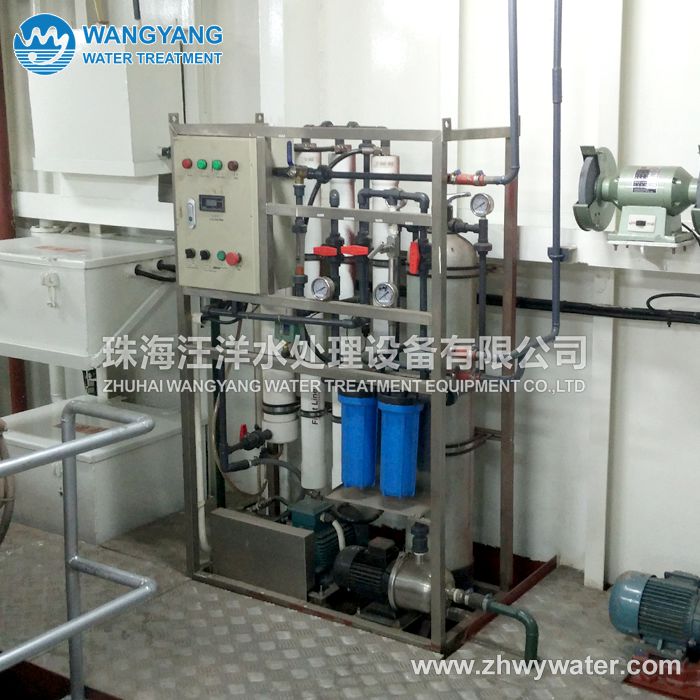

Marine Sea Water Desalination System
The marine seawater desalination system adopts the international advanced reverse osmosis technology and is designed by optimizing the system.
The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2022).
The marine sea water desalination equipment adopts reverse osmosis water treatment technology, and has been well received by many customers after many years of practical application.
The desalination equipment is mainly treated with domestic drinking water from boats, ships, offshore platforms and islands. The treated water can meet the national drinking water standards, and can be treated again to meet the national pure water standards.
Specifiactions:
|
Model |
Water yield |
Power |
Recovery rate |
Dimensions |
|
m3/d |
KW |
% |
mm |
|
|
WY-FSHB-1 |
1 | 1.5 | 10 |
900*440*1500 |
|
WY-FSHB-2 |
2 | 2.05 | 18 |
900*440*1600 |
|
WY-FSHB-3 |
3 | 2.05 | 20 |
900*440*1600 |
|
WY-FSHB-5 |
5 | 2.75 | 25 |
900*440*1600 |
|
WY-FSHB-10 |
10 | 5.5 | 25 |
1400*700*1900 |
|
WY-FSHB-15 |
15 | 5.5 | 30 |
1400*700*1900 |
|
WY-FSHB-20 |
20 | 7.5 | 32 |
1400*700*1900 |
|
WY-FSHB-25 |
25 | 7.5 | 32 |
1400*700*1900 |
Equipment can be made according to customer’s requirements, only standard models are shown in the form.
Raw Water Quality
TDS: ≦40000mg/L
Inlet Temperature: 5~45℃
Product Water Quality
TDS: <700mg/L (City tap water standard)
Desalination Rate: ≧99.5%
Operating Pressure: <6.5MPa
Power
Voltage: 220V / 380V /440V, 50~60HZ, Three-phase
Protection Levels: IP54
Please contact us for more details.
Mobile: +86 133 2668 2480(Steve)
+86 133 2665 7486(Abey)
Whatsapp: +86 137 9898 8771(Steve)
+86 159 1922 3536(Abey)
Email: abey@zhwywater.com
Process flow diagram
Water inlet → Multi-media filter → Precision filter → High pressure pump → Reverse osmosis system → Product water
Configuration
● RO Membrane: USA DOW / TORAY / HYDRANAUTICS .
● Pressure Vessel: Firstline, FRP Material.
● Raw Water Booster Pump: Grundfos / CNP.
● High Pressure Pump: HAWK/ CNP.
● Device Framework: Industry-standard thick-walled stainless steel tube, and pipe outer surface is polished.
● Pipeline: The high-pressure side pipeline adopts dualphase steel or stainless steel pipelines and high-pressure hoses. Low-pressure side pipe uses UPVC pipe.
● Electric Element: Schneider.
Water quality
First-stage RO water quality: National Standard for Drinking Water (GB5749-2022).
Second-stage RO water quality: Pure water standard.
Performance and features
● Reverse osmosis seawater desalination technology is mature and advanced, the desalination rate is up to 99.5%.
● Energy saving design, low energy consumption and low cost of water production.
● Rigorous process design ensures long system life and low maintenance costs.
● Compact equipment, small size, easy installation.
● Easy to operated and maintained, cleaned and repaired without disassembly, easy to managed.
● Customizable according to customers’needs.
Recommended Products
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Customer Cases
|
|
|
|
|
|
|
|
Reverse Osmosis Technology
The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.
The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.
The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.
Applicable field
 |
 |
 |
| Ship | Island | Industrial process water |
 |
 |
 |
| Offshore working platform | Coastal water shortage area | Desert area |
Raw Water Quality
TDS: ≦40000mg/L
Inlet Temperature: 5~45℃
Product Water Quality
TDS: <700mg/L (City tap water standard)
Desalination Rate: ≧99.5%
Operating Pressure: <6.5MPa
Power
Voltage: 220V / 380V /440V, 50~60HZ, Three-phase
Protection Levels: IP54
Specifiactions:
|
Model |
Water yield |
Power |
Recovery rate |
Dimensions |
|
m3/d |
KW |
% |
mm |
|
|
WY-FSHB-1 |
1 | 1.5 | 10 |
900*440*1500 |
|
WY-FSHB-2 |
2 | 2.05 | 18 |
900*440*1600 |
|
WY-FSHB-3 |
3 | 2.05 | 20 |
900*440*1600 |
|
WY-FSHB-5 |
5 | 2.75 | 25 |
900*440*1600 |
|
WY-FSHB-10 |
10 | 5.5 | 25 |
1400*700*1900 |
|
WY-FSHB-15 |
15 | 5.5 | 30 |
1400*700*1900 |
|
WY-FSHB-20 |
20 | 7.5 | 32 |
1400*700*1900 |
|
WY-FSHB-25 |
25 | 7.5 | 32 |
1400*700*1900 |
Equipment can be made according to customer’s requirements, only standard models are shown in the form.
